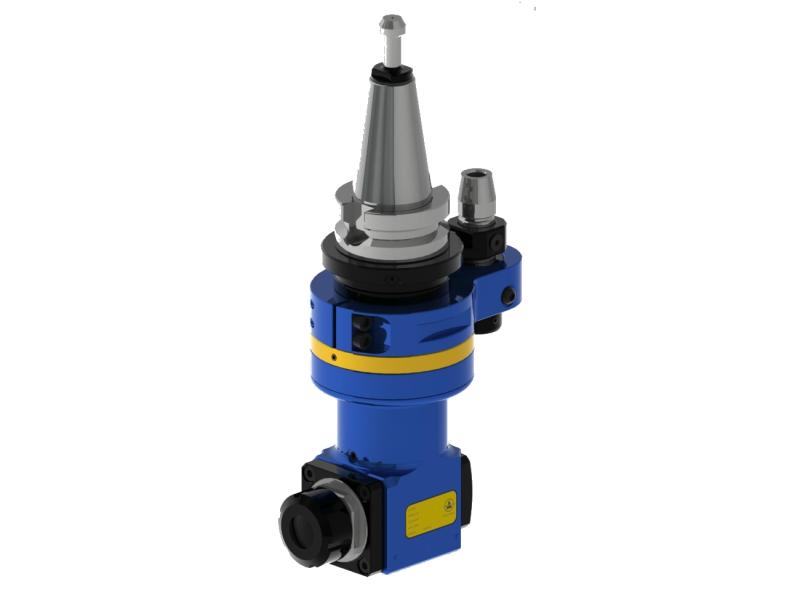

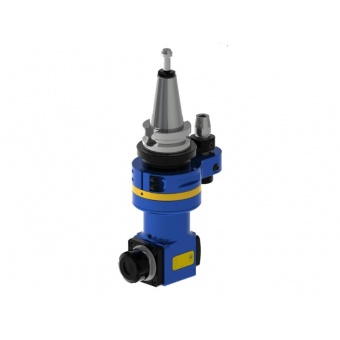

◎BT30-ER25 90° Aluminum Angle Head (AHM Type)
◎Run-out：0.002 mm
◎Material：Aerospace Aluminum Alloy
◎R.P.M.：Max. 6000 RPM
◎Torque : Max. 15 Nm
◎Drilling : Max. 12 mm
◎Tapping : Max. M8
◎Gear Ratio：1：1
◎Standard Accessory：Open End Wrench, ER Wrench, ER Nut
◎Output Rotation : Reverse to Input Rotation
◎6000 rpm high speed processing. Increases Machining efficiency.
◎Compact and lighter body design is suitable for machines with light-load magazine and high speed ATC system.
◎Can be automatic tool changed. Increases productivity.
◎Enclosed Positioning Pin: Cutting Direction can be adjusted from 0~360 degrees. It allows higher clamping torque and cutting direction could remain during the machining.
?
