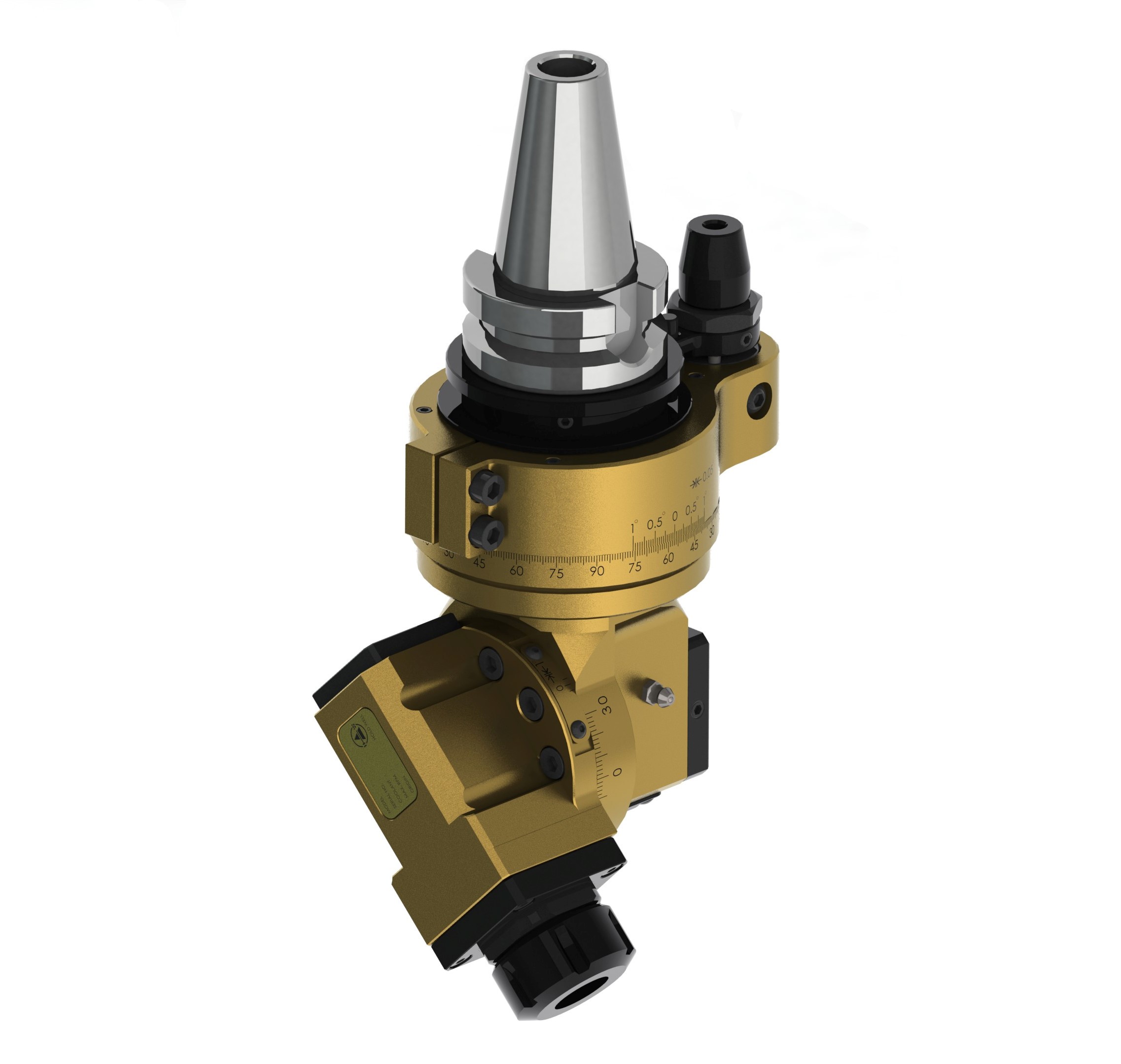

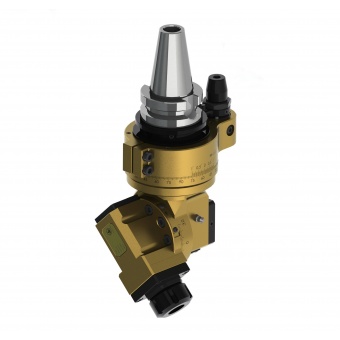

◎ BT50-ER25 Universal Angle Head (AHL Type)
◎?Run-out : 0.002 mm
◎?Material : Aerospace Alu. Alloy / Ductile Cast Iron / Alloy Steel
◎?R.P.M. : Max. 6000 RPM
◎?Torque : Max.?25 Nm
◎?Drilling : Max. 14 mm
◎?Tapping : Max. M10
◎?Gear Ratio : 1 :?1
◎?Standard Accessory : Open End?Wrench, ER Wrench, ER Nut
◎?Output Rotation : Same as Input Rotation
◎??Cutting angle can be set from 0°~ ±120°for various applications.
◎??Compact design provides extra strength, oil-proof, dust-proof, and duration.
◎??Can be automatic tool changed. Increases productivity.
◎??Enclosed Positioning Pin: Cutting Direction can be adjusted from 0~360 degrees. It allows higher clamping torque and cutting direction could remain during the machining.
