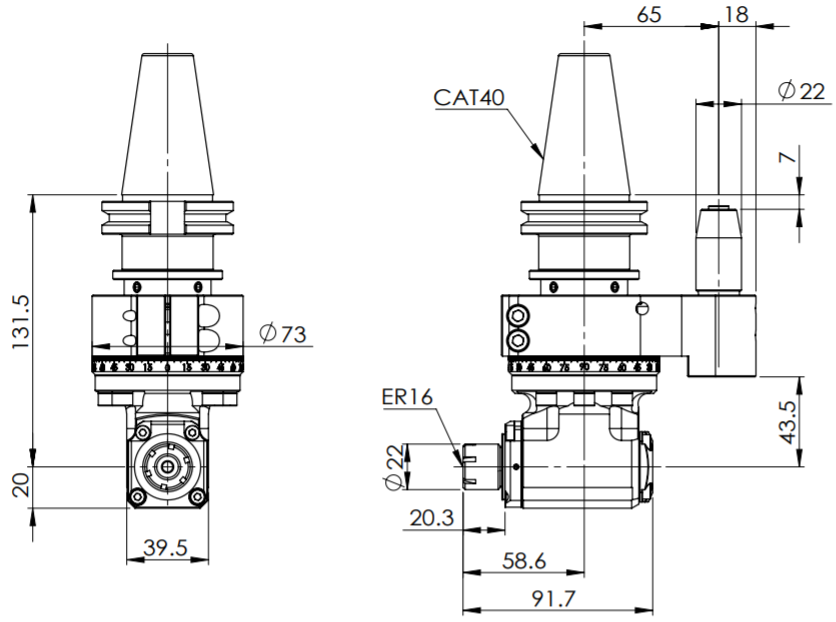

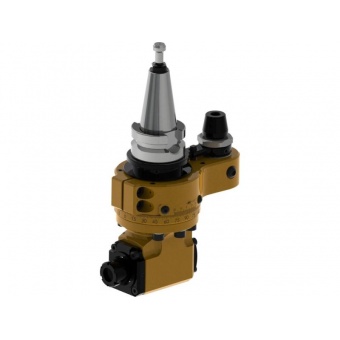

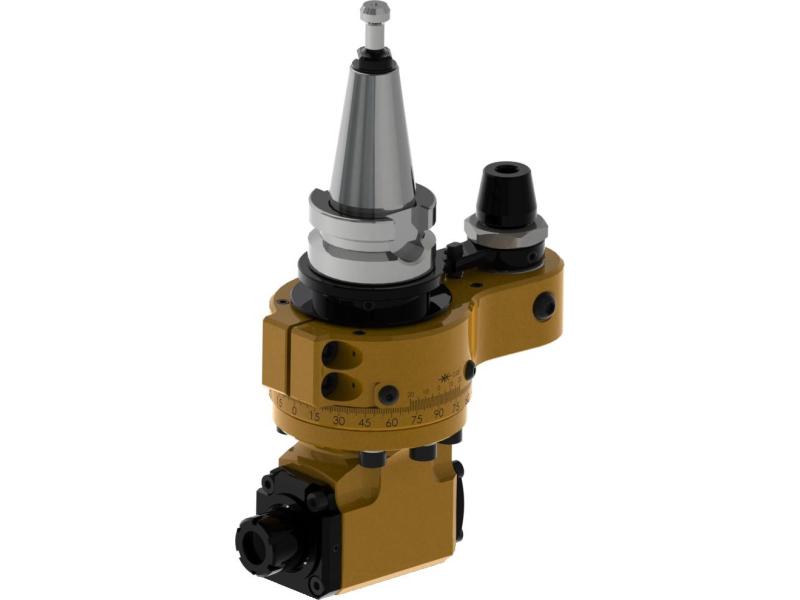

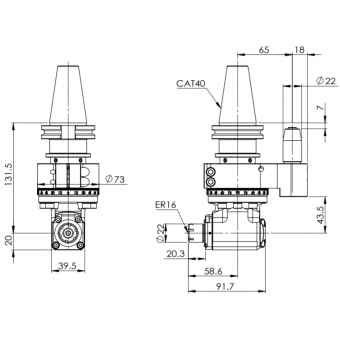

◎?CAT40-ER16?Light Angle Head (AHL Type)
◎?Run-out ： 0.002 mm
◎?Material ： Alloy Steel
◎?R.P.M. ： Max. 8000 RPM
◎?Torque ： Max. 12 Nm
◎?Drilling： Max. 10 mm
◎?Tapping： Max. M8
◎?Gear Ratio ： 1：1
◎?Standard Accessory： M Type Wrench,?Pin Wrench, ER Nut
◎?Output Rotation ： Reverse to Input Rotation
◎??Compact and lighter body design is suitable for?drilling, milling, and tapping application.
◎??Can be automatic tool changed. Increases?productivity.
◎??Enclosed Positioning Pin: Cutting Direction can?be adjusted from 0~360 degrees. It allows higher?clamping torque and cutting direction could?remain during the machining.
