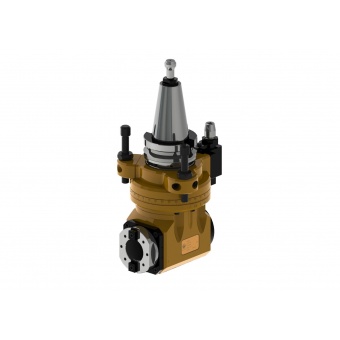

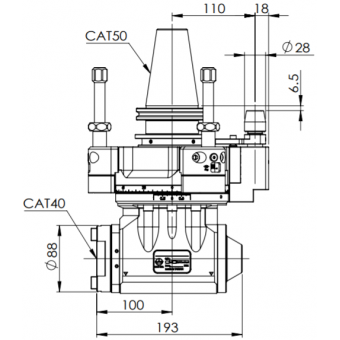

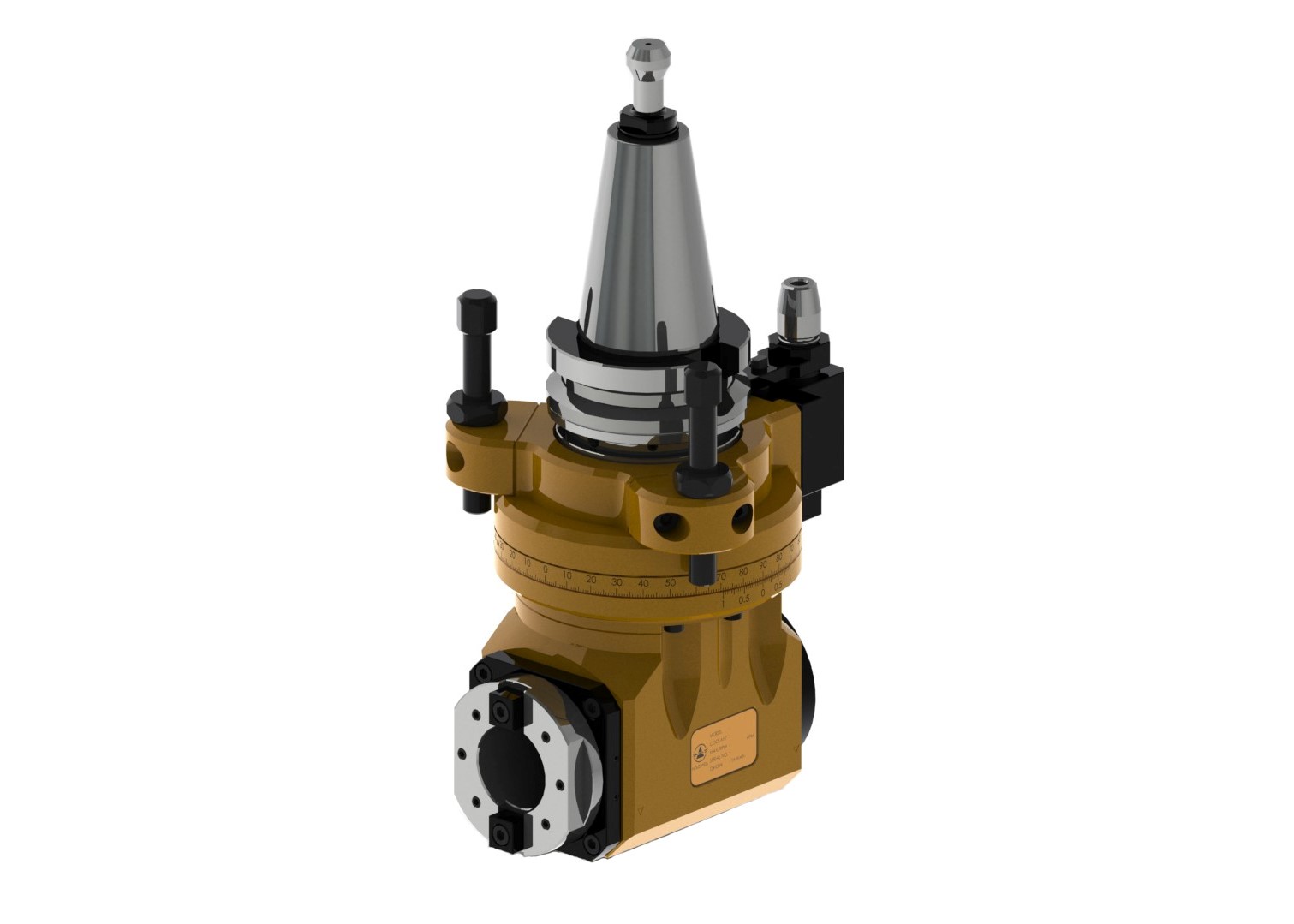

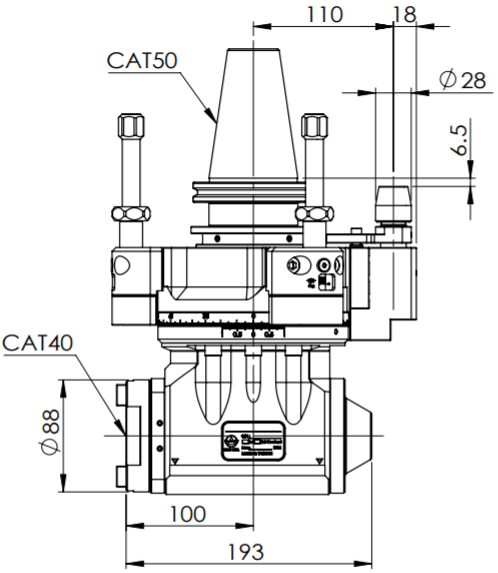

◎ CAT50-CAT40 Multi-Block Angle Head (AHK Type)
◎ Run-out：0.002 mm
◎ Material：Alloy Steel
◎ R.P.M.：Max. 6000 RPM
◎ Torque：Max. 100 Nm
◎ Drilling：Max. 24 mm
◎ Tapping：Max. M18
◎ Gear Ratio：1：1
◎ Standard Accessory：Open End Wrench, L Type Wrench
◎ Output Rotation：Reverse to Input Rotation
◎?The output interface of Taper40 ensures wide-range application with various CAT40 tool holder.
◎?Hardened precision spiral bevel gears ensure stable performance with long service life.
◎?Cutting direction can be adjusted from 0 ~ 360 degree.
◎?Multi-block support system improves working rigidity and stability.
◎?The automatic disengagement and engagement of Angle Head can be easily operated on the base of table and improve efficiency.
◎?Rugged Alloy Steel body construction with compact design.
