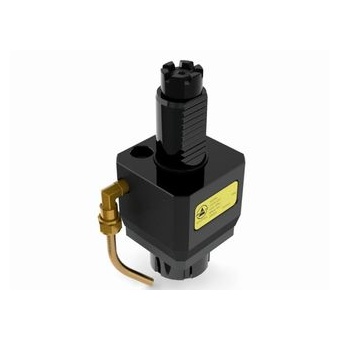

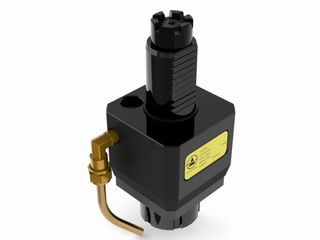

◎ VDI30-MT-ER32 Axial Driven Tool Holder
◎ Tool Holder is produced in accordance with DIN 69880.
◎ Driven Coupling is according to SPUR MT TOEM.
◎ ER Collet is according to DIN6499.
◎ For left hand and right hand turret.
◎ R.P.M.：Max. 6,000 RPM

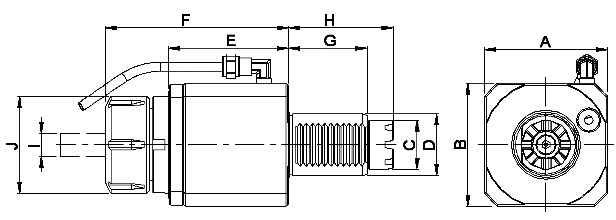

| Model No. | A | B | C | D | E | F | G | H | I | J | N.W. (KG) |
| THB-A05-30D | 64 | 64 | 24 | 30 | 64 | 98 | 45 | 59 | ER32(3~20) | 50 | 2.3 |
