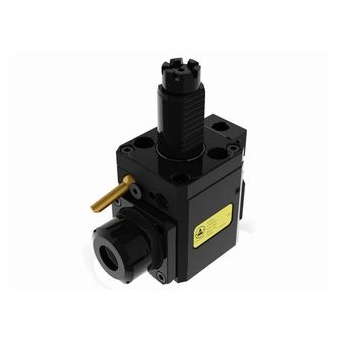

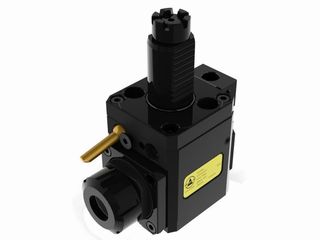

◎ VDI40-MT-ER32 Radial Driven Tool Holder
◎ Tool Holder is produced in accordance with DIN 69880.
◎ Driven Coupling is according to SPUR MT TOEM.
◎ ER Collet is according to DIN6499.
◎ For left hand and right hand turret.
◎ Further option : 6000 RPM
?
?Dry Cutting & Side Milling
Model：THB-B05.65-40D
Cutting Tool：Carbide Endmills D16 x 4 Flute
Material：S50C
Speed：956 rpm
Feed：320 mm/min?
Ap：5 mm Ae：16 mm?
Q：30 cm3/min
◎ Gear Ratio：1：1
◎ R.P.M.：Max. 4,000 RPM

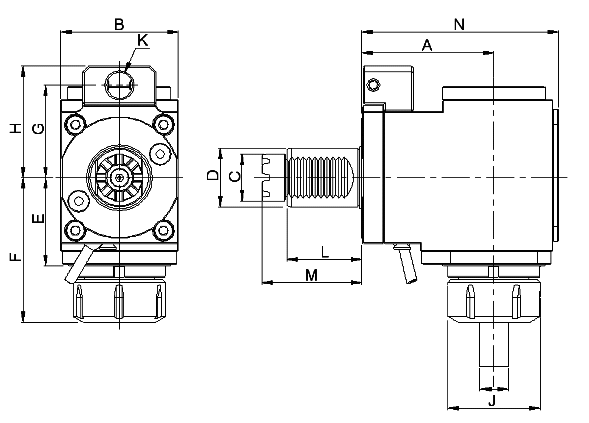

| Model No. | A | B | C | D | E | F | G | H | I | J | K | L | M | N | N.W. (KG) |
| THB-B05.65-40D | 65 | 76 | 32 | 40 | 49 | 81.5 | 63/70 | 75/82 | ER32(3~20) | 50 | 16 | 51 | 68 | 101 | 5.1 |
Unit:mm
