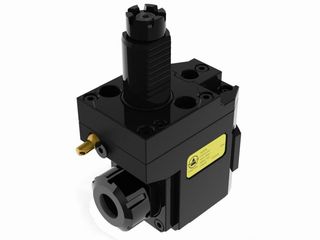

THB-D05.90-40D VDI40-MT-ER32 徑向內縮動力刀座

產品介紹

m_prod2014042500085
◎ VDI40-MT-ER32 Radial Offset Driven Tool Holder◎ Tool Holder is produced in accordance with DIN 69880.◎ Driven Coupling is according to SPUR MT TOEM.◎ ER Collet is according to DIN6499.◎ For left hand and right hand turret.◎ Further option : 6000 RPM

THB-D05.90-40D VDI40-MT-ER32 徑向內縮動力刀座



  • 描述
  • IM_EXTRA_TAB_ADD1
  • 規格

◎ VDI40-MT-ER32 Radial Offset Driven Tool Holder
◎ Tool Holder is produced in accordance with DIN 69880.
◎ Driven Coupling is according to SPUR MT TOEM.
◎ ER Collet is according to DIN6499.
◎ For left hand and right hand turret.
◎ Further option : 6000 RPM


◎ Gear Ratio：1：1
◎ R.P.M.：Max. 4,000 RPM

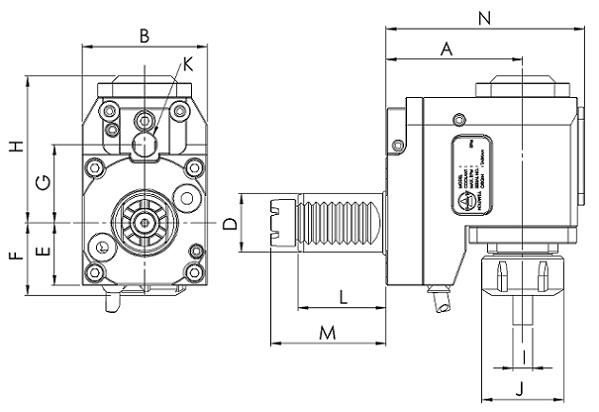

Model No. A B D E F G H I J K L M N N.W. (KG)
THB-D05.90-40D 90 80 40 38 31.5 63/70 98.5 ER32(3~20) 50 16 51 68 125.5 7.2

Unit:mm
